The DeLorean's engine relies on a vacuum system to operate properly. Vacuum leaks (damaged or disconnected vacuum lines that allow outside air to compromise the vacuum) can result in a poorly running engine with reduced performance and fuel economy.
Routing Diagrams[edit | edit source]
Vacuum routing diagram location in the engine compartment (marked by the red square).
Diagrams of how the vacuum hoses are routed can be found in the Delorean manuals, online, and in the car itself.
- On the inside of the lower engine compartment cover. See the page A:08:05 of the DeLorean Workshop Manual, or page 0-1-3 of the DeLorean Parts Manual, or the image to the right, for how to identify the diagram.
- Page 0-1-3 of the DeLorean Parts Manual has a small version of the diagram.
- An image posted by lostprophet in Vacuum Diagram on DMCTalk, showing the original vacuum diagram.
Routing[edit | edit source]

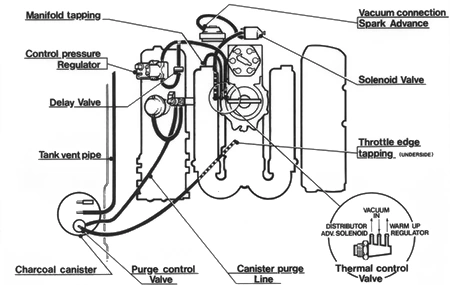

Original vacuum routing diagram
For the most part, routing involves following the engine routing diagram.
This article is a stub. You can help DeLorean Tech Wiki by expanding it.
- What I'd like to see here is pictures of the components with links to articles about them, and a description of where the hard-to-find connections are and how to access them. - Jangell 05:45, 3 March 2008 (MST)
